QK1343 CNC Pipe Threading Lathe | Heavy Duty Oil Pipe Lathe for Petroleum Drilling Pipe Processing

Send Inquiry

Request To Call Back

QK1343 CNC Pipe Threading Lathe | Heavy Duty Oil Pipe Lathe for Petroleum Drilling Pipe Processing

Get a Price/Quote

QK1343 CNC Pipe Threading Lathe | Heavy Duty Oil Pipe Lathe for Petroleum Drilling Pipe Processing Specification

Product Type
CNC Pipe Threading Lathe

General Use
Petroleum Drilling Pipe Processing

Material
Alloy Cast Iron, Steel

Type
Horizontal Lathe

Capacity
Maximum Machining Diameter: 430 mm

Weight (kg)
6500 kg

Computerized
Yes

Automatic
Fully Automatic

PLC Control
Yes (CNC controlled)

Bar Feeder
Optional

Power Source
Electric

Power Consumption
15 kW

Rigidity
High Rigidity Cast Iron Bed

Voltage
380V / 415V / Customized

Motor
Main Spindle Motor 15 kW

Table Size
N/A (Lathe has bed not table)

Spindle Speed
10-500 rpm (variable)

Axial Choice
Z and X axes

Dimension (L*W*H)
4250 x 1400 x 1750 mm

Feature
High Precision, Heavy Duty, Suitable for Oil Pipe Threading

Color
Standard Industrial Color (Gray/Blue & White)

Controller Brand
Fanuc / Siemens / GSK (optional)

Thread Range
Metric & Inch (various)

Tailstock Quill Diameter
100 mm

Tailstock Quill Travel
200 mm

Spindle Nose
A2-11

Max Swing Over Carriage
350 mm

X/Z Axis Rapid Traverse
6 / 8 m/min

Lubrication System
Automatic

Max Swing Over Bed
630 mm

Max Pipe Diameter
430 mm

Coolant System
Equipped

Max Pipe Length
2000 mm

Chuck Diameter
400 mm

Spindle Bore
130 mm

About QK1343 CNC Pipe Threading Lathe | Heavy Duty Oil Pipe Lathe for Petroleum Drilling Pipe Processing

Product Overview

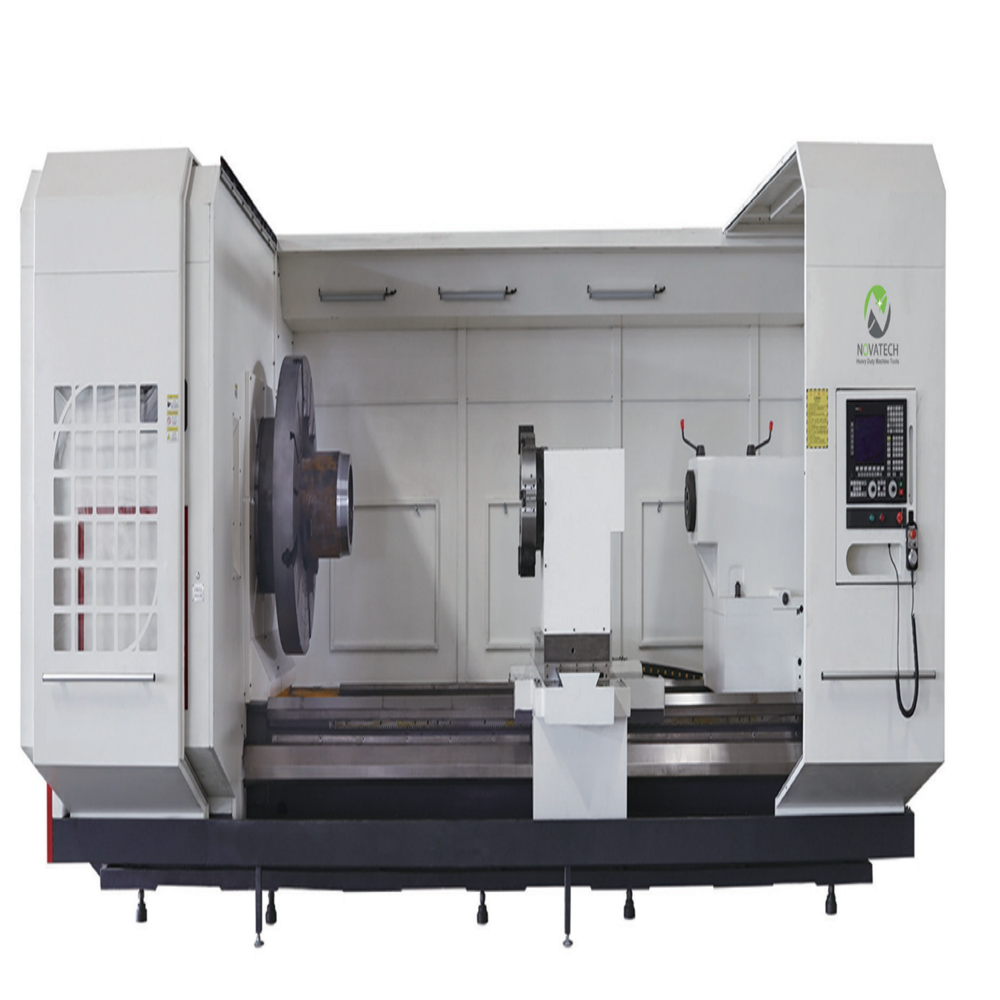

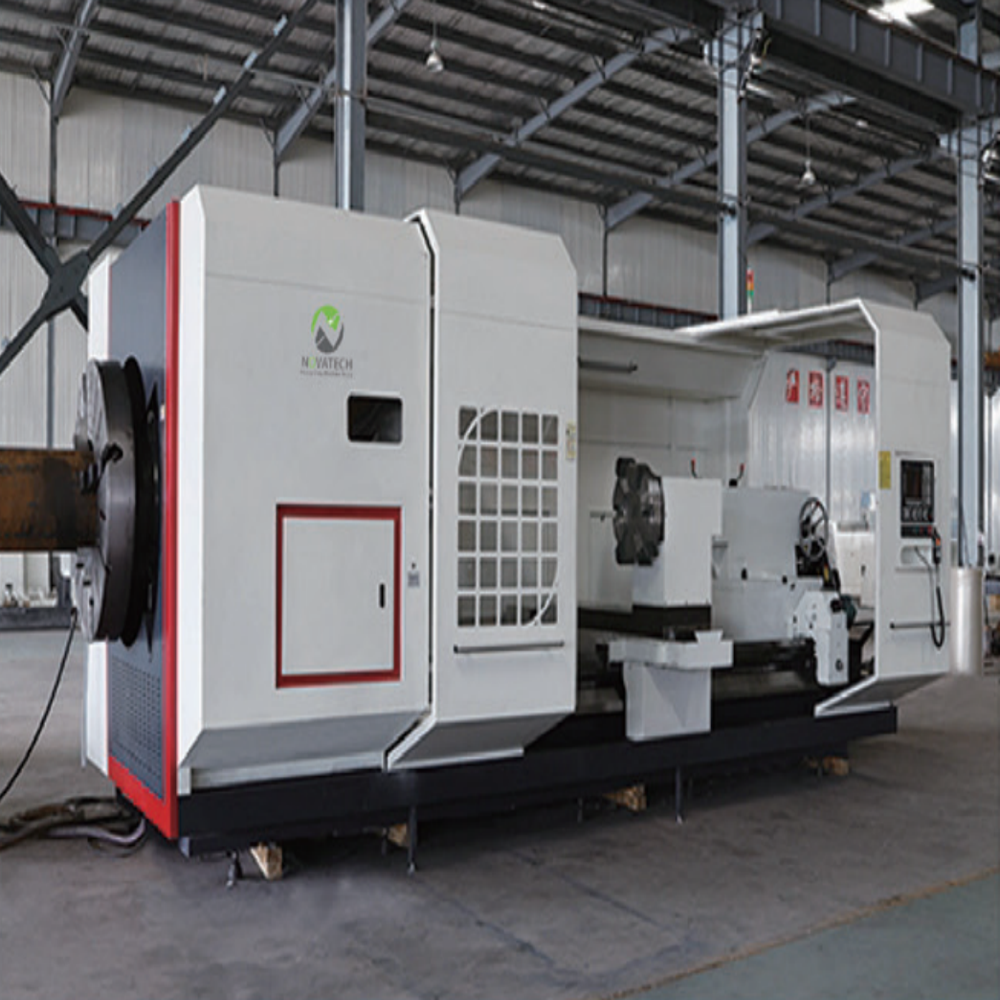

QK1343 CNC pipe threading lathe is a heavyduty industrial lathe dedicated to processing internal and external metric and taper pipe threads. It also completes general turning work including cylindrical surface, conical surface, spherical surface, grooving and endface machining. Widely applied in petroleum exploitation, mineral mining, chemical pipeline and geological prospecting industries.

Standard Configuration

4station NC turret
Manual tailstock
Automatic lubrication system
Coolant system
Semishield safety guard

Optional Accessories

FANUC / SIEMENS / KND CNC controller, quickchange tool post, hydraulic turret, power turret, pneumatic/hydraulic chuck, hydraulic tailstock, fullenclosed safety shield

Main Features

Highstrength castiron machine bed with excellent rigidity and machining precision
Ultrasonicquenched guideways with strong wear resistance and long service life
TurciteB coating on carriageguideway contact surface to ensure stable accuracy

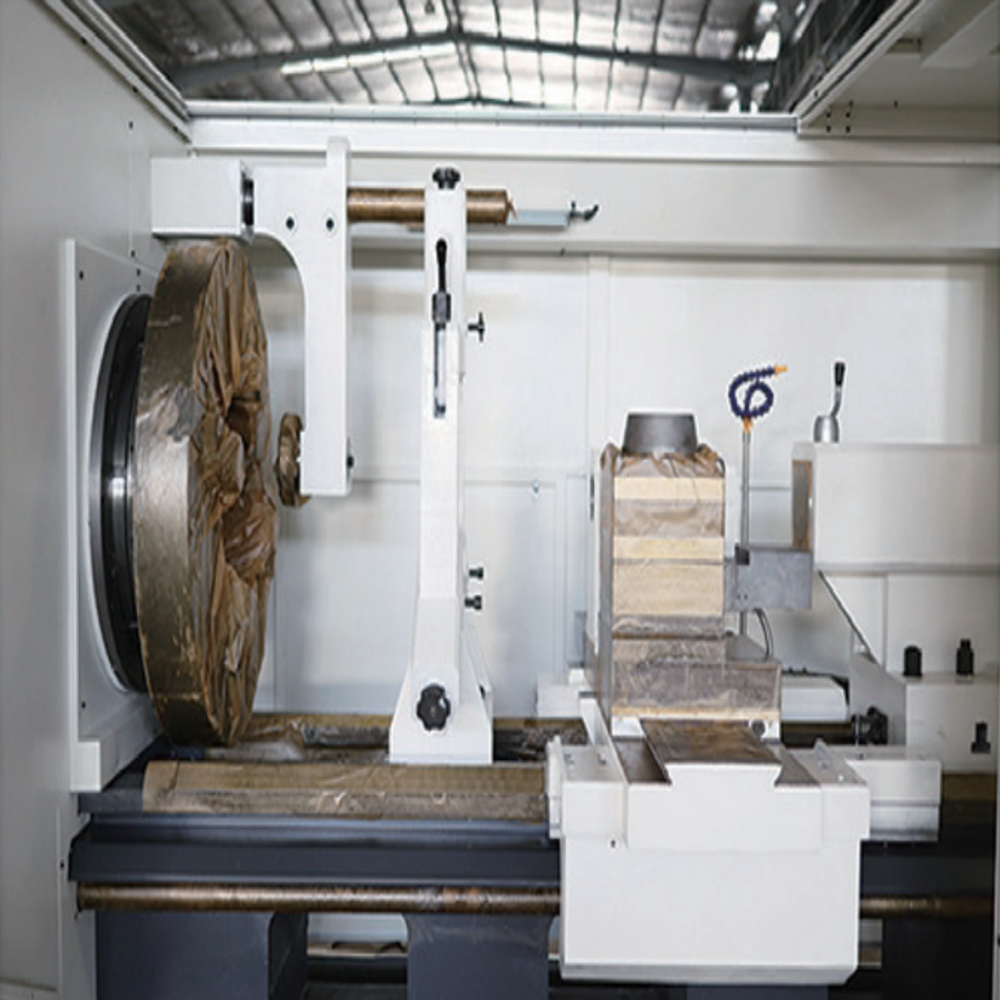

Large spindle bore & fourjaw chuck, suitable for largediameter pipe clamping
Electric chuck available to improve massproduction efficiency

Main Technical Parameters

Item	Parameter
Max swing over bed	1000 mm
Max swing over cross slide	610 mm
Max workpiece length	1500 mm
Pipe threading range	260430 mm
Spindle bore	440 mm
Spindle motor power	22 kW
X/Z rapid traverse	4000/5000 mm/min
Positioning accuracy	0.020 mm
Repositioning accuracy	0.01 mm
Overall dimension	490022002300 mm
Machine weight	14 T

Contact Information

Contact me: Tina

WhatsApp: +86 17857586156

Email: dezhou@dzguanlu.com

Deephole Machine Series: www.dzgljc.com

Heavyduty Lathe Series: www.novatechlathe.com

Built for Oilfield Precision and Durability

The QK1343 CNC Pipe Threading Lathe is specifically engineered for processing petroleum drilling pipes with maximum precision and durability. Its heavy-duty cast iron construction ensures stability even with larger workpieces, while CNC controls allow for repeatable and intricate threading operations. Suitable for both metric and inch threads, it's a crucial asset for oil and gas manufacturing applications.

Advanced CNC Control and Flexible Operation

Operators can choose from top CNC controller brands like Fanuc, Siemens, or GSK for seamless, reliable, and customizable machine control. With its fully automatic capability, rapid traverse speeds, and programmable thread cutting, this machine enables efficient, hands-off operation while maintaining stringent quality standards in thread cutting and turning.

Enhanced Capacity and Safety for Pipe Machining

Accommodating pipes up to 430 mm in diameter and 2000 mm in length, the QK1343 delivers unmatched capacity for large-scale projects. With an automatic lubrication system, powerful spindle, and integrated coolant, the lathe minimizes maintenance needs while maximizing both operator safety and long-term performance in industrial settings.

FAQ's of QK1343 CNC Pipe Threading Lathe | Heavy Duty Oil Pipe Lathe for Petroleum Drilling Pipe Processing:

Q: How does the QK1343 CNC Pipe Threading Lathe improve pipe threading efficiency?

A: The QK1343 is fully automatic and CNC-controlled, allowing operators to program thread types and cutting sequences. With rapid traverse speeds of 6/8 m/min and consistent spindle rotations, the machine streamlines threading, reducing manual intervention and increasing throughput for petroleum pipe manufacturing.

Q: What types of threads can this lathe machine process?

A: This lathe handles both metric and inch thread ranges, accommodating a wide variety of threading requirements often found in oilfield pipe processing. The CNC controller ensures high accuracy and repeatability across all supported thread forms.

Q: When is it recommended to use the automatic lubrication and coolant systems?

A: The automatic lubrication and coolant systems are designed to operate continuously during machining to ensure optimal performance, enhance tool life, and prevent overheating or component wear during extended or high-load operations.

Q: Where is the QK1343 best suited for installation?

A: This lathe is ideal for oilfield equipment manufacturers, petroleum pipe workshops, and industrial settings requiring heavy-duty pipe machining. Its robust construction allows for stable operation within large-scale production environments, ensuring safety and precision.

Q: What is the process for changing controller brands (Fanuc, Siemens, GSK) on this machine?

A: Controller options must be specified at the time of order. Integration is performed by the exporter/manufacturer before delivery, ensuring seamless setup of either Fanuc, Siemens, or GSK controllers according to client requirements.

Q: How can the QK1343 benefit my petroleum pipe processing business?

A: With its high rigidity, automation, and precision, the QK1343 enhances production rates and maintains consistent thread quality. This reduces downtime and rework, boosting both operational efficiency and product reliability for pipe manufacturers.
