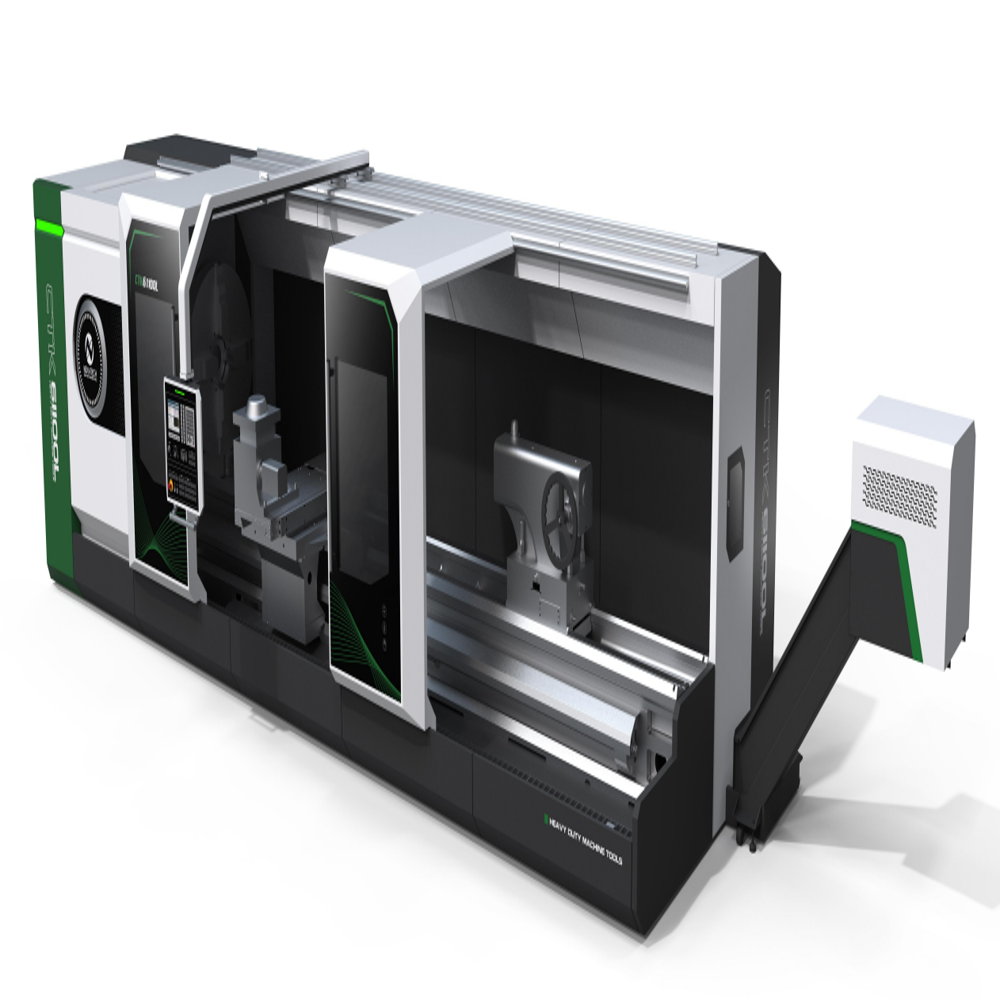

CTK611 series CNC Large lathe

Price 1.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

About CTK611 series CNC Large lathe

Product Highlights

A high-performance horizontal flat-bed CNC lathe, controlled by the SIEMENS 828D CNC system, equipped with a portable handwheel for easy operation, ideal for heavy-duty machining scenarios.

Core advantages: 45 hard rail guideway (medium-frequency hardened) for high rigidity; hydraulic four-speed spindle, electric four-station turret, and split upper-lower tailstock for stable and efficient operation; servo motor + precision transmission for high machining accuracy.

Key Parameters (Core Specifications)

Parameters	Unit	Specifications
Max swing diameter over bed	mm	1250-2050
Max workpiece length	mm	6000-20000
Main motor power	kW	AC37 (MK)
Machining accuracy	-	IT6-7, Ra1.6

Core Structure & Configuration

Bed: HT300 resin sand casting, 1100mm width, "one V one flat" guideway, high rigidity and load-bearing capacity.
Headstock: Three-bearing structure, 5-315 r/min spindle speed, low-speed high torque.
CNC System: SIEMENS 828D, with tool compensation, interpolation, and manual handwheel feed functions.
Optional Parts: Roller steady rest, workpiece support rollers, chain-type chip conveyor.

Key Advantages

High rigidity, stable operation, high machining precision, easy operation, suitable for heavy-duty, large-scale workpiece turning and boring, widely used in machinery manufacturing fields.

Feel free to contact us for more details.
