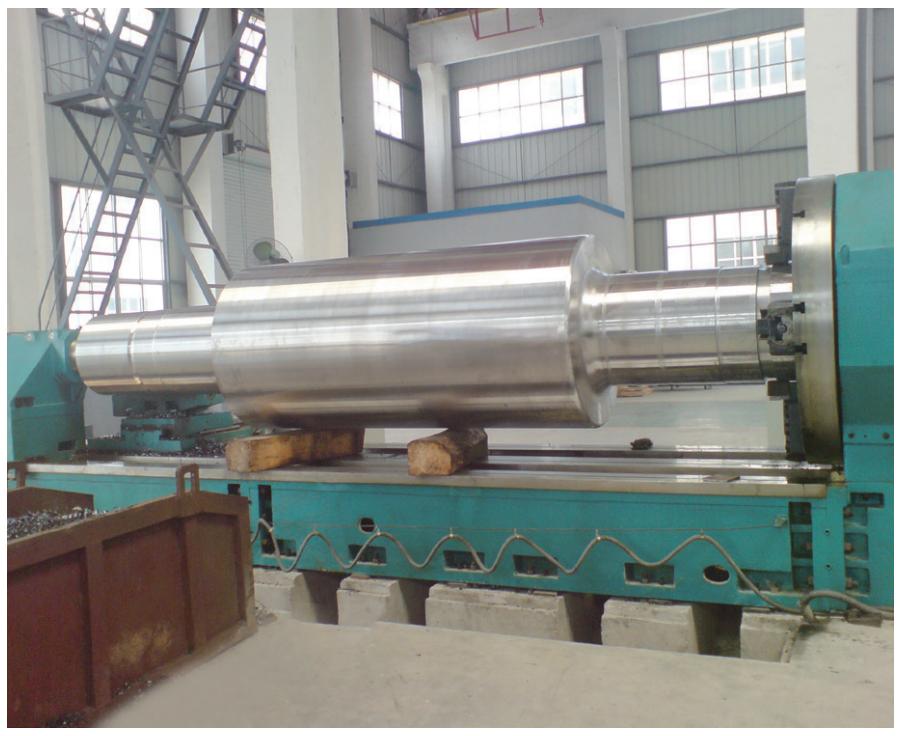

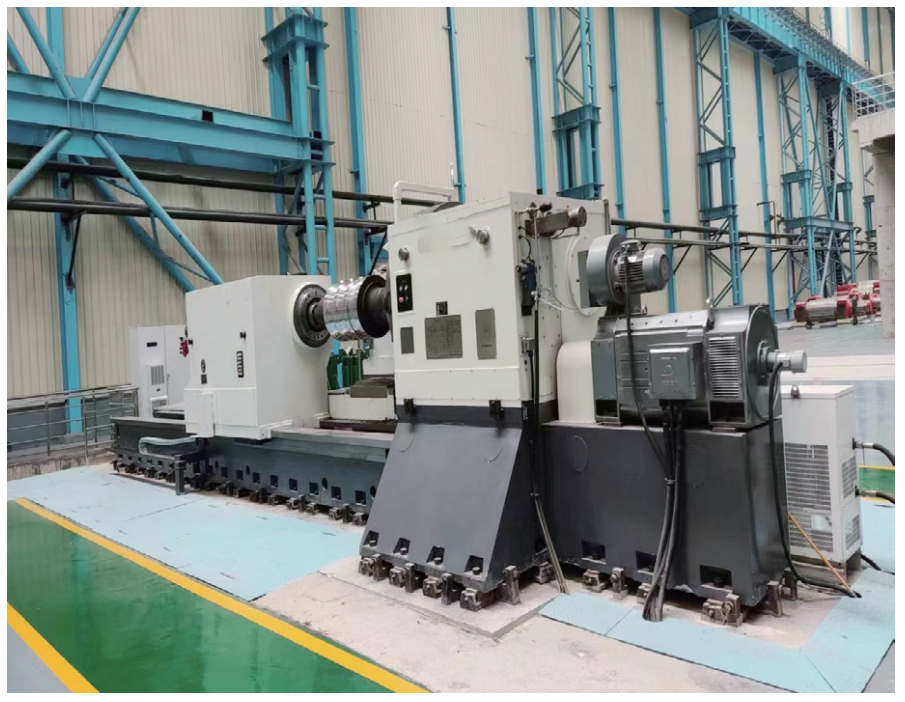

CK84100 10m/20T Heavy Duty CNC Turning & Milling Roll Lathe

Send Inquiry

Request To Call Back

CK84100 10m/20T Heavy Duty CNC Turning & Milling Roll Lathe

Get a Price/Quote

MOQ : 1 Piece

CK84100 10m/20T Heavy Duty CNC Turning & Milling Roll Lathe Specification

Product Type
Heavy Duty CNC Turning & Milling Roll Lathe

Material
Cast Iron/Steel Structure

Cutting Thickness
Up to 50 mm (material dependent)

Cutting Speed
2~2000 mm/min (variable)

Engraving Area
Customizable; up to 10 meters between centers

Graphic Format Supported
G-code, ISO Standard CNC Codes

CNC Or Not
CNC

Automatic Grade
Automatic

Control System
Siemens / Fanuc / GSK (Optional)

Max. Swing Diameter
1000 mm

Voltage
380V / 415V, 3 Phase, 50/60 Hz

Weight (kg)
Approx. 20,000 kg (20T)

Dimension (L*W*H)
14000 x 2500 x 2200 mm

Capacity
Max. workpiece weight 20 Tons

Feature
Heavy Duty, Combined Turning & Milling, High Precision, Programmable

Color
Industrial Grey/Blue

Spindle Bore
130 mm

Bed Width
900 mm

Turret Tool Station
4/6/8 stations (optional)

Tailstock Travel
9000 mm

Coolant System
High-Pressure Automatic

Application
Precision Roll Turning, Milling, Grooving, Multi-Process Turning

Position Accuracy
0.02 mm

Lubrication System
Centralized Automatic

Suitable Materials
Steel, Alloy Steel, Cast Iron, Hardened Steel, Rolls

Max. Turning Length
10,000 mm

Repeatability
0.015 mm

X/Z Axis Travel
Max 1000 mm / 10,000 mm

Tailstock Quill Diameter/Travel
250 mm / 300 mm

Drive Type
AC Servo Motor

Main Spindle Speed Range
1~200 rpm

About CK84100 10m/20T Heavy Duty CNC Turning & Milling Roll Lathe

Step into the spotlight of precision engineering with the CK84100 10m/20T Heavy Duty CNC Turning & Milling Roll Lathe-an acclaimed solution designed for astonishing productivity. This spectacular machine features a formidable 10,000 mm turning length and an unassailable bed width of 900 mm, expertly crafted for machining large and heavy rolls up to 20 tons. With programmable Siemens, Fanuc, or GSK controls, high positioning accuracy (0.02 mm), and a robust AC Servo Motor drive, it delivers popular, multi-process versatility across steel, alloy, and hardened workpieces. Perfect for demanding roll turning, milling, and grooving in industrial manufacturing.

Highlights & Features of CK84100 Heavy Duty CNC Roll Lathe

The CK84100 lathe is engineered for demanding roll machining, with outstanding features such as a high-pressure coolant system, centralized automatic lubrication, and variable cutting speed up to 2000 mm/min. Designed with an industrial grey/blue finish, it supports a customizable engraving area up to 10 meters and accommodates rolls weighing up to 20 tons. Its programmable, multi-process capability ensures efficiency, while the sturdy cast iron/steel structure offers enduring performance for steel, alloy steel, and hardened materials.

Domestic Market Reach, Supply Capability, and Shipping Info

The CK84100 10m/20T CNC Lathe commands attention in prominent domestic markets, providing consistent performance to manufacturing sectors requiring high capacity. With robust supply ability, asking price reflects its heavy-duty nature and precision engineering. Units are shipped securely from our FOB port, ensuring optimized freight arrangements based on customer requirements. Reliable after-sales service and customization cater to industrial clients, aiming for on-time delivery and seamless order handling across key domestic regions.

FAQ's of CK84100 10m/20T Heavy Duty CNC Turning & Milling Roll Lathe:

Q: How does the CK84100 lathe enhance precision in heavy-duty machining?

A: The CK84100 delivers exceptional accuracy with its position accuracy of 0.02 mm and repeatability of 0.015 mm, ensuring consistent results even on large workpieces. Advanced CNC controls and programmable settings further contribute to its high-precision capabilities.

Q: What types of materials can be machined with the CK84100 CNC lathe?

A: This lathe is suitable for machining steel, alloy steel, cast iron, hardened steel, and rolls, supporting industries that require high-strength and wear-resistant materials.

Q: Where is the CK84100 mainly used, and what are its primary applications?

A: The lathe is widely used in manufacturing and heavy industries for precision roll turning, milling, grooving, and multi-process turning of large industrial rolls and cylindrical components.

Q: How is the shipping process handled for the CK84100 lathe?

A: Shipping is managed via secure freight from our FOB port. The machine is packed to withstand long-distance transport, and delivery arrangements are tailored to meet customer deadlines and logistics requirements.

Q: What benefits do users gain from the automatic lubrication and coolant systems?

A: Automatic lubrication and high-pressure coolant systems optimize component life and machining accuracy, reducing manual intervention and ensuring smoother operations during heavy-duty processes.

Q: What is the supply ability of the CK84100 CNC lathe and how can I inquire about pricing?

A: We maintain robust supply capabilities to meet industrial demand. For detailed quotations and the latest asking price, customers are encouraged to contact our sales team directly.
